Building it from source

To use Ferrous Lineup, the ready-made downloads are enough (see the manual’s Installing it). To read its code with this book, change it and run its tests, build it yourself. It takes a few commands on Linux, macOS or Windows.

1. Install Rust

Rust is installed with rustup, a small tool that downloads the compiler (rustc) and the build tool (cargo) and keeps them up to date:

curl --proto '=https' --tlsv1.2 -sSf https://sh.rustup.rs | sh

On Windows, download and run rustup-init.exe from https://rustup.rs instead. Restart the terminal afterwards and check that it worked:

cargo --version
rustc --version

Ferrous Lineup needs Rust 1.95 or newer, as rust-version in the root Cargo.toml says: it uses the 2024 edition of the language (see Editions), if let chains, which arrived in Rust 1.88, and file locks, which arrived in 1.89, and egui and eframe, which draw the window, need 1.95. If your Rust is older, rustup update fixes it.

2. Install the system’s build tools

Rust downloads its own libraries, the crates, by itself, but it needs a linker from your system, and on Linux a few crates talk to libraries that come with the system: ALSA for sound, and X11 or Wayland for windows.

Debian or Ubuntu:

sudo apt install build-essential pkg-config libasound2-dev \
    libxkbcommon-dev libxkbcommon-x11-0 libwayland-dev

Fedora:

sudo dnf install gcc pkgconf-pkg-config alsa-lib-devel \
    libxkbcommon-devel libxkbcommon-x11 wayland-devel

File dialogs use the desktop’s portal, which GNOME and KDE already have; on a bare window manager, install xdg-desktop-portal-gtk. MIDI goes through the ALSA sequencer, which desktop systems load already; if the app’s MIDI menu says MIDI is unavailable, load it with sudo modprobe snd-seq.

macOS: Apple’s command line tools bring the linker and the system libraries:

xcode-select --install

Windows: when rustup-init.exe asks, let it install the Visual Studio Build Tools; Rust uses their linker. Then use the commands below in PowerShell or the Command Prompt.

3. Get the code and run it

Clone the repository (Git comes with the build tools on macOS and Linux; on Windows, install it from https://git-scm.com) and build:

git clone https://github.com/naelolaiz/ferrous-lineup
cd ferrous-lineup
cargo run --release

The first build takes a few minutes, because Cargo compiles every dependency; later builds compile only what changed. --release turns on the optimizations, which audio code needs to keep up. While you work on the code, cargo run alone builds faster, and keeps the console where messages and panics show.

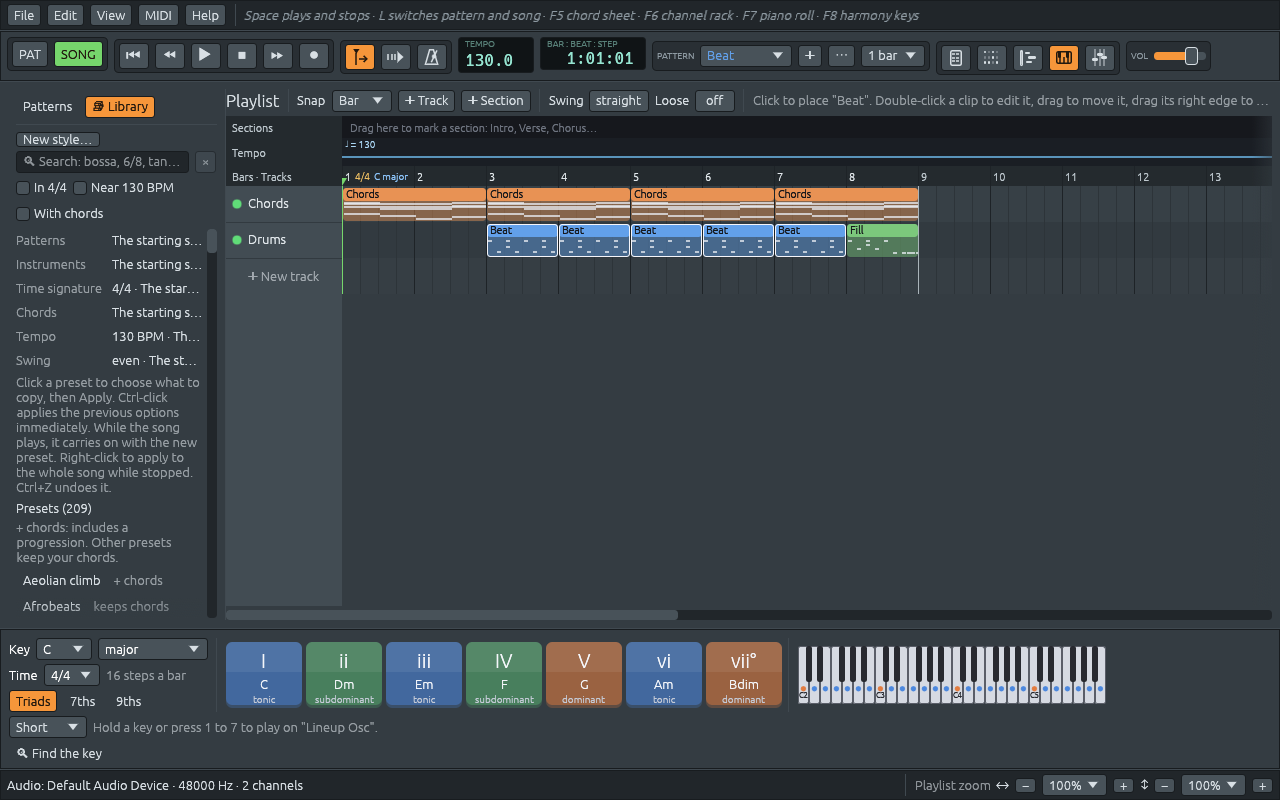

The first time, a window over it offers real instrument sounds; SoundFonts and General MIDI says what it does.

The manual’s The main window says what each part of it does.

4. From the command line

The program takes a few arguments of its own. After cargo run, -- says that what follows is for the program, not for Cargo:

cargo run --release -- my-song.lineup                       # open a project
cargo run --release -- --demos                              # list the demos
cargo run --release -- --trace "Frère Jacques" --out round.tsv   # play a demo headless, note by note
cargo run --release -- --help

--trace is the playback trace: it plays a project or a demo the way File > Export WAV… does, without a window or a sound card, and writes every note it starts to a table.

5. Run the tests

cargo test

runs every test of every crate of the workspace. How the code is tested says what kinds there are and how to run some of them.

6. Build the books

The books are written with mdBook, a Rust tool. Install it once, at the version the workflow uses, then build:

cargo install mdbook --version 0.5.4 --locked
cd book
mdbook serve --open

mdbook serve builds the website, opens it, and builds it again each time you save a page. book-es/, manual/ and manual-es/ work the same way. How the books are built also prints the PDF.
